Instruction Manual

3

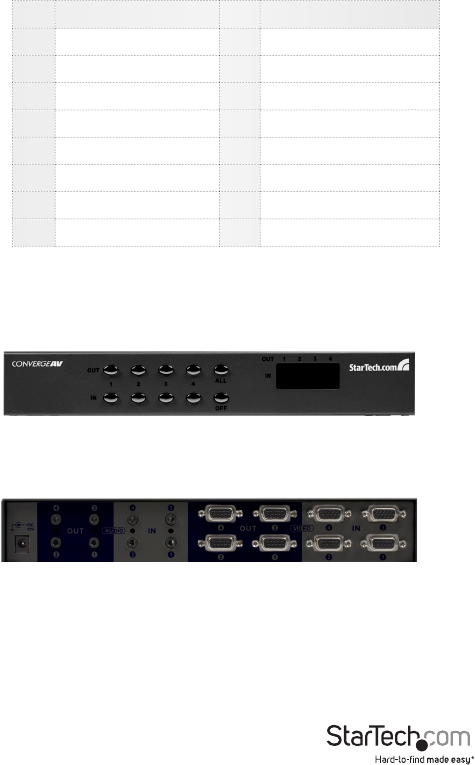

Technical Specications

Front View

Rear View

Pin Signal Pin Signal

1 Red video 9 NC

2 Green video 10 Ground

3 Blue video 11 NC

4 NC 12 ID1

5 Ground 13 Horizontal sync

6 Analog ground 14 Vertical sync

7 Analog ground 15 ID3

8 Analog Ground
